ASTM C1186 is the key performance benchmark architects, builders, and siding contractors rely on when specifying fiber‑cement siding for durable exterior envelopes. Understanding what this standard requires makes it easier to evaluate products, write specs, and ensure cladding assemblies will perform over the long term.
What ASTM C1186 Covers
According to an industry technical note on ASTM C1186 fiber‑cement boards, this standard is the specification for flat non‑asbestos fiber‑cement sheets used for exterior applications such as wall claddings, façades, curtain walls, and soffits. It applies to both untextured and surface‑textured sheets and is intended for non‑asbestos fiber‑cement products only.
The standard explicitly excludes asbestos‑cement sheets, gypsum‑based boards, cement‑bonded particleboard, and interior‑only fiber‑cement substrates, each of which is covered by separate ASTM or ISO specifications. In practice, that means ASTM C1186 is the go‑to reference when you are dealing with exterior flat fiber‑cement cladding, trim, and soffit materials.
Type A vs. Type B Sheets
ASTM C1186 divides fiber‑cement sheets into two types based on their exposure conditions and required durability.
- Type A sheets are intended for exterior applications directly exposed to sun, rain, or snow, such as primary cladding, open‑soffit conditions, and façade panels, and must meet performance requirements in both wet and equilibrium states.
- Type B sheets are for exterior applications not directly exposed to sun, rain, or snow, such as protected soffits and some sheltered assemblies, and are primarily evaluated at equilibrium conditions.
Choosing between Type A and Type B is about correctly matching expected exposure and service conditions so the siding assembly will remain stable, safe, and durable.
Flexural Strength Grades and Structural Performance
Beyond type, ASTM C1186 classifies fiber‑cement sheets into different grades based on flexural strength, which is critical for resisting wind loads, impact, and handling stresses. Higher grades correspond to higher minimum flexural strengths in both wet and equilibrium conditions (for Type A) or equilibrium alone (for Type B).
The testing protocol measures maximum load and calculates modulus of rupture across a defined span, using specimen dimensions and procedures set out in associated test methods. This ensures that published strength values are comparable between manufacturers and can be paired with project‑specific engineering or prescriptive design tables.
For specifiers, grade selection affects allowable panel size, support spacing, and fastening patterns, especially in high‑wind or high‑impact zones. Coordinating the grade of fiber‑cement siding with the substrate, framing layout, and connection details is essential to maintain system performance.
Physical Properties and Durability Requirements
ASTM C1186 defines a wide range of physical and durability requirements to ensure fiber‑cement siding remains stable and serviceable over time. Key properties include:
Density and dimensions:
The standard sets criteria for dry density as well as tolerances for length, width, thickness, squareness, and edge straightness, supporting precise panel alignment and tight joints on elevation.
Moisture movement:
Limits on dimensional change related to moisture cycling reduce the risk of warping, buckling, or joint opening in service.
Water tightness
As summarized in an independent overview of ASTM C1185 fiber‑cement test methods, specimens are evaluated for water absorption, moisture content, and water tightness to confirm resistance to through‑panel leakage.
Surface burning characteristics
When evaluated with recognized fire tests, compliant fiber‑cement products typically achieve low flame‑spread and smoke‑developed indexes, supporting their use in fire‑resistant wall assemblies.
Freeze‑thaw, heat‑rain, and warm water resistance
Durability tests simulate long‑term environmental exposure, confirming that the material maintains its structural integrity and surface condition under thermal and moisture cycling.
These requirements give design teams and contractors a common performance baseline for comparing products and documenting code‑compliant assemblies.
Workmanship, Finish, and Appearance
The specification includes workmanship and appearance provisions so flat fiber‑cement sheets provide a consistent, architecturally acceptable finish. Sheets must have a commercially uniform surface on at least one face and be free from major defects that would impair performance or aesthetics, such as significant delaminations or cracking.
Color may be the natural cementitious tone or created using mineral pigments, chemical impregnation, coatings, veneers, or embedded mineral granules. This flexibility allows fiber‑cement siding to emulate wood, stone, or contemporary panels while still meeting the underlying structural and durability requirements of ASTM C1186.
Using ASTM C1186 in Project Specifications
For design professionals and siding contractors, referencing ASTM C1186 in project documents does more than add a line of code language; it sets a measurable baseline for product performance. Typical specification language pairs ASTM C1186 compliance with required type (A or B), flexural strength grade, and any supplementary tests for moisture content, water absorption, and water tightness.
Coordinating these requirements with project zoning and design guidance helps ensure that fiber‑cement siding assemblies align with both performance expectations and local context. In Ashland, for example, the town’s R‑1 residential guidelines emphasize consistent façade materials across all elevations, as outlined in the Town of Ashland R‑1 district standards, which reinforces the value of choosing robust, visually coherent cladding systems.
On the jobsite, submittals and quality‑control checks can then verify that delivered products match the specified type, grade, and documented test reports.

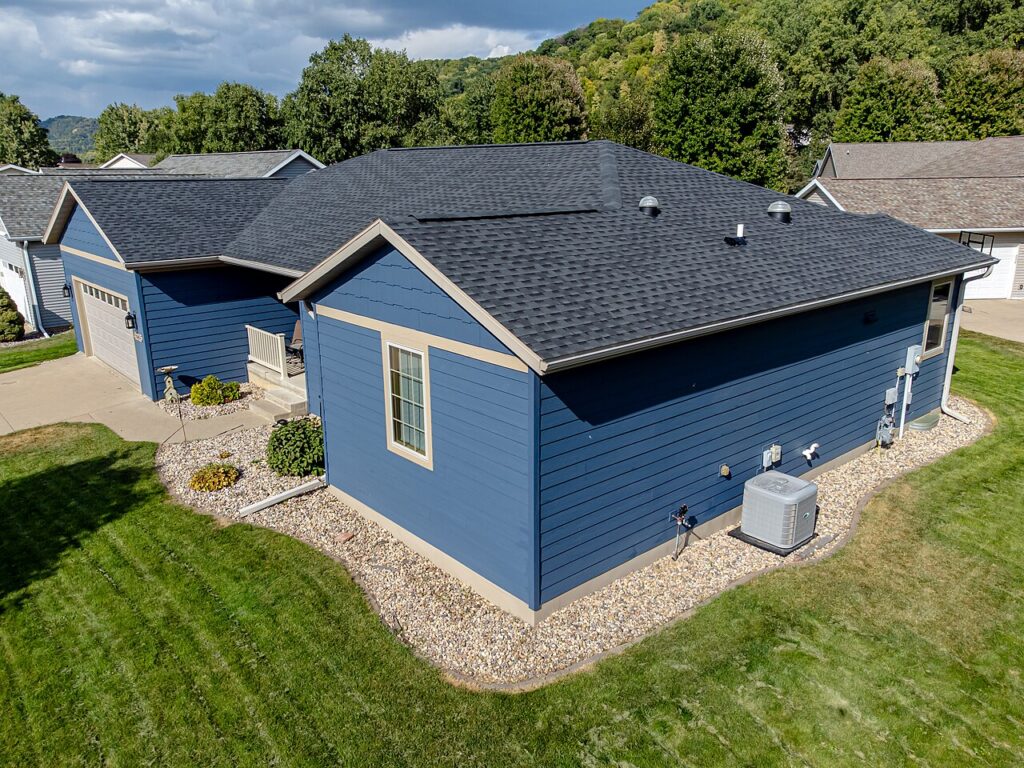

ASTM C1186‑Compliant Fiber‑Cement Siding in Ashland, Virginia
For fiber‑cement siding in Ashland, Virginia, a contractor who understands ASTM C1186 and local exterior guidelines can help you turn technical requirements into a durable, refined exterior that fits the town’s historic character.
If you have questions about ASTM‑compliant siding for your property, reach out to Horizon Exteriors today to discuss your project.
